Geotextile Membrane

Heavy Duty Woven Geotextile Membrane (100gsm) branded as GroundTex.

Heavy Duty Woven Geotextile Membrane (100gsm) branded as GroundTex.

Application: GroundTex woven geotextile fabric works above ground as a heavy duty weed control fabric, built to last for long term weed suppression. Having a good tear resistance makes this ground control fabric also suitable for use below ground as a stabilising and separating membrane, especially under gravel driveways & paths. This fabric is perfect for areas of the garden that gets lots of foot traffic and is graded as 100gsm. Based on regular feedback, we are confident that Ground Cover Solutions GroundTex is one of the best quality 100g heavy duty woven geotextile membrane on the market.

Available Sizes: Large selection of rolls that come in widths of 1m, 1.5m, 2.0m, 3.3m, 4.2m, 4.5m and 5.0m wide.

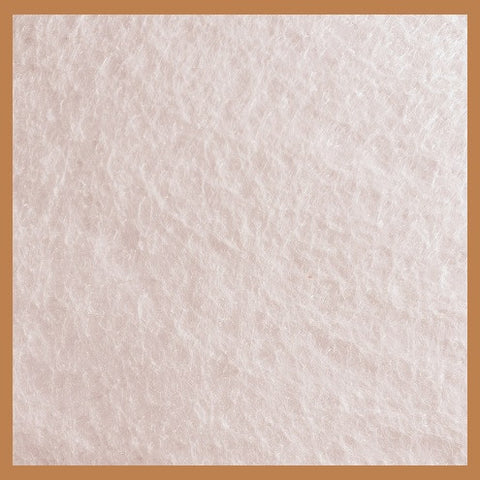

Earthworx NW1000 - Heavy Duty Non-Woven Geotextile Membrane 100g

Heavy Duty Non-Woven Geotextile Membrane (100gsm) branded as Earthworx NW1000.

Application: NW1000 is an extra heavy duty, non-woven geotextile 100gsm with superior durability and mechanical resistance, providing ultimate performance in separation, filtration, drainage and reinforcement. EARTHWORX NW1000 is a quality geotextile fabric, manufactured from 100% polypropylene fibres to a high specification, which makes it suitable for demanding civil engineering projects particularly those with areas subject to a large volume of vehicular traffic and large imposed loads.

This geotextile membrane prevents the sub-grade (soil) and sub-base (MOT Type 1 or similar) layers from mixing, which leads to contamination of the stone sub-base resulting in sinking and rutting of the surface. EARTHWORX NW1000 is widely used for roads, highways, car parks, railway construction, foundations and retaining structures. EARTHWORX NW1000 can also be used as a drainage and separation layer in the construction of horse arenas, subject to the joints being correctly stitched or bonded.

Available Sizes: As this fabric is mainly used in large civil engineering applications we only sell this fabric in a jumbo roll 4.5m x 100m

Driveway Geotextile Membrane (90gsm) branded as DriveTex.

Driveway Geotextile Membrane (90gsm) branded as DriveTex.

Application: DriveTex nonwoven geotextile fabric is permeable, so allows water to pass through providing drainage, filtration and separation functions between aggregate and soil layers and therefore is widely used for wrapping land drains (perforated pipes) and soakaway crates in groundworks and drainage applications.

DriveTex is also prefect for ground stabilisation and designed to be used as a separator between aggregate and soil layers, making it ideal for under vehicle areas as a brick / monoblock driveway fabric. Based on regular feedback, we are confident that Ground Cover Solutions DriveTex is one of the best quality 90g geotextile driveway membrane on the market.

Available Sizes: Large selection of popular roll sizes that come in widths of 1m, 2.25m and 4.5m wide.

Geotextile Filter Membrane (80gsm) branded as DrainTex

Geotextile Filter Membrane (80gsm) branded as DrainTex.

Application: DrainTex is a standard nonwoven geotextile filter membrane with excellent drainage and filtration properties. DrainTex has a stable but open structure making it ideal for lining trenches when constructing land drains. DrainTex also acts as a filter membrane, separating the aggregate from the soil, thus preventing the aggregate from mixing with the soil and reducing the efficiency and capacity of the drain.

DrainTex is also used for wrapping soakaway and water attenuation crates in both small domestic and large commercial projects. Again the high permeability of the fabric, means water can percolate through whilst preventing the soakaway becoming silted up. DrainTex can also be used as a ground stabilisation membrane beneath type 1 or 3 aggregate or hardcore to form a stable base in many hard landscaping and civil engineering applications. Based on regular feedback, we are confident that Ground Cover Solutions DrainTex is one of the best quality 80g geotextile filter membrane on the market.

Available Sizes: Roll sizes that come in widths of 2m and 4.5m wide.

Free Delivery & Discounts: Free Delivery with every order and massive multi purchase discounts.

Free Delivery

FABRIC COMPARISON GUIDE
It is important for us that you order the correct fabric, specific to your application. If you are not 100% sure which fabric is best for your project, then please have a look at our Fabric Comparison Guide, which should help you select the most appropriate fabric for your needs.
VIDEO TUTORIALS ON HOW TO INSTALL
If you need some guidance or tips on how to correctly install one of our fabrics, then please have a look at our video tutorials on how to install, which should help answer some of the questions you may have.
